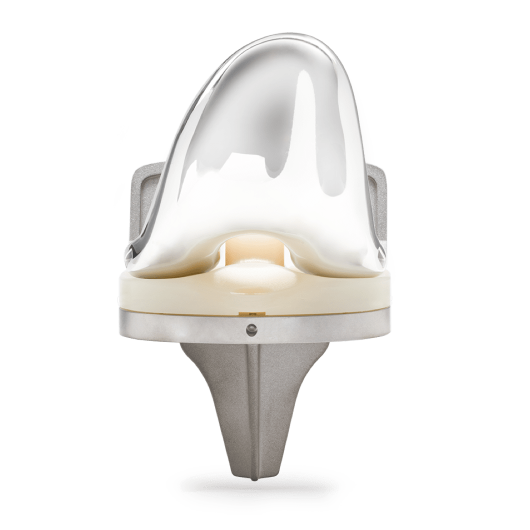

BKS TriMax®

Evolution of stability and balance.

Building on the 20-year clinical heritage of the BKS® Knee System, BKS TriMax represents the next step in the evolution of total knee arthroplasty. Key design refinements in the BKS TriMax enable surgeons to improve achievement of alignment and stability while promoting bone conservation and operative efficiency.

Related Resources

Overview

Designed to meet contemporary demands in total knee arthroplasty.

Improved trochlear geometry to accommodate variations in surgical approach and alignment philosophies
Enhanced posterior femoral radius to promote a greater range of motion (ROM)
Decreased PS box resection to optimize bone conservation
Maximized wear performance with E-Vitalize Polyethylene
Expanded insert constraint options to enhance stability and balance in total knee arthroplasty

Header Text

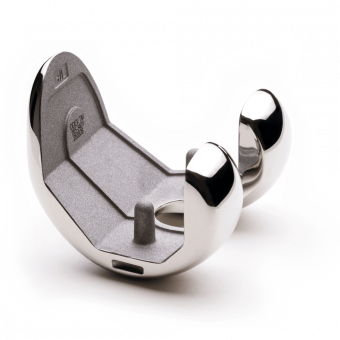

Femoral Components

BKS TriMax CR Femoral Component

Standard and narrow sizes
Easy transition to BKS Difficult Primary and BKS Revision Systems
Smooth articulation through full range of motion
Consistent reproducibility in the hands of every surgeon
Simple, precise and intuitive instrumentation

BKS TriMax PS Femoral Component

Standard and narrow sizes
Easy transition to BKS Difficult Primary and BKS Revision Systems
Smooth articulation through full range of motion
Consistent reproducibility in the hands of every surgeon
Simple, precise and intuitive instrumentation

Tibial Inserts

E-Vitalize CR Tibial Insert

1 mm increments for precise ligament balancing (transitions to 2 mm from sizes 12 mm – 16 mm)
Size two-up and two-down between femoral component and tibial insert
E-Vitalize Cross-linked Vitamin E Polyethylene to maximize wear performance
GUR 1020, Compression Molded, 7.5 Mrads

E-Vitalize UC Tibial Insert

1 mm increments for precise ligament balancing (transitions to 2 mm from 14 mm – 20 mm)
Size one-up and one-down between femoral component and tibial insert
E-Vitalize Cross-linked Vitamin E Polyethylene to maximize wear performance
GUR 1020, Compression Molded, 7.5 Mrads

E-Vitalize PS Tibial Insert

1 mm increments for precise ligament balancing (transitions to 2 mm from 14 mm – 20 mm)
Size two-up and one-down between femoral component and tibial insert
E-Vitalize Cross-linked Vitamin E Polyethylene to maximize wear performance
GUR 1020, Compression Molded, 7.5 Mrads

E-Vitalize PS Plus Insert

9 tibial insert sizes offered: 7 mm – 10 mm in 1 mm increments and 12 mm – 20 mm in 2 mm increments
Size one-up and one-down between femoral component and tibial insert
GUR 1020, Compression Molded, 7.5 Mrads
E-Vitalize Cross-linked Vitamin E Polyethylene to maximize wear performance

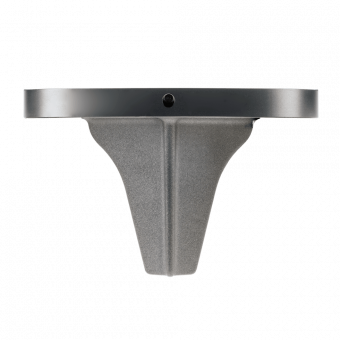

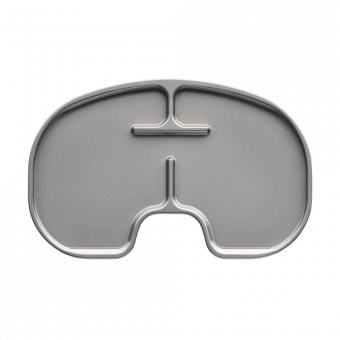

Tibial Tray

Tibial Tray

One-piece design for overall component strength
Bone-conserving keel design
Unique, patented one-step tibial insert locking mechanism to address and reduce micromotion
Continuous peripheral rail fully captures the tibial insert to ensure resistance to high shear forces

Patellar Component

Patellar Component

Patellar Component has a dome-shaped, three-peg design
E-Vitalize Cross-linked Vitamin-E Polyethylene

Technology

BKS® Total PSI

Personalized planning and execution for greater surgical control and efficiency in and out of the operating room.

Gain patient-specific insights through in-depth virtual visualization and assessment of patient anatomy.
Execute precise knee implant positioning with MRI-based preoperative planning and 3D-printed guides.
Accommodate surgeon alignment preferences and patient anatomy.
Optimize surgical workflow with less instrumentation and no additional operating room footprint.
Enable surgical plan reproducibility with accuracy and efficiency.
Reduce costs and enhance surgical outcomes using broadly accessible enabling technology.

BKS Total PSI is compatible with Ortho Development’s total knee arthroplasty systems BKS and BKS TriMax.
