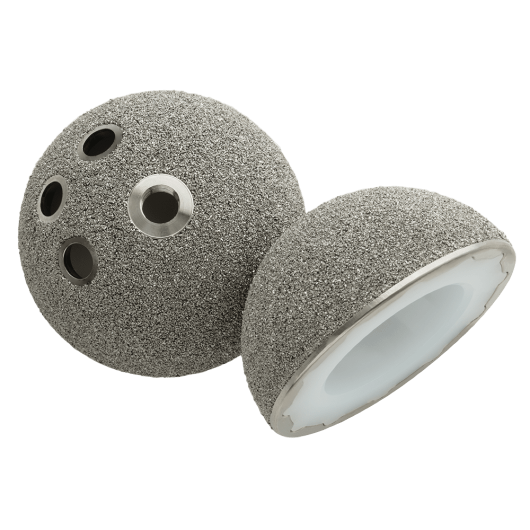

Legend® Acetabular Shell

Optimal Fit. Reliable Fixation.

The Legend Acetabular System offers a versatile range of sizes and a true hemispherical design for optimal fit. Enhanced with 3D porous titanium coating, the Legend Shell delivers a scratch-fit texture for initial stability, while 200–300μm pore size promotes long-term fixation.

Related Resources

Overview

The feature-forward system is designed for optimal fixation, offering surgeons intuitive options to aid in hip replacement surgery.

Highly-porous ingrowth surface with an average pore size of 200-300μm
Sintered titanium shard coating promotes initial stability and long-term fixation
Secure combination taper and snap locking mechanism
Legend HXLPE liners address wear reduction and mechanical preservation
Locking tabs facilitate ease of insertion and provide exceptional anti-rotational stability

Shells

Features

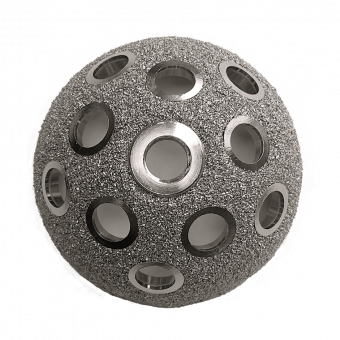

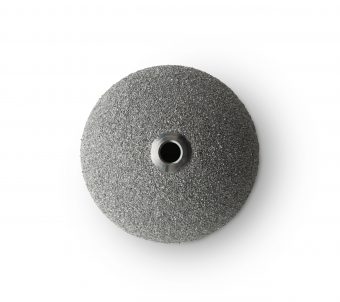

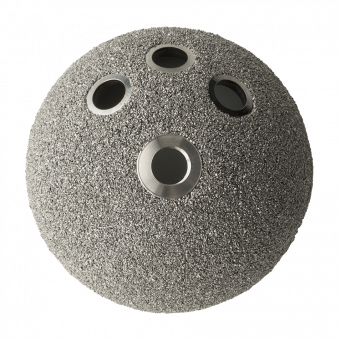

No-Hole, 3-Hole and Multi-Hole: 6, 10 and 12 hole options available
Available in a comprehensive range of sizes
Secure combination taper and snap locking mechanism
True hemispherical design
30° of overall screw angulation

Legend Acetabular Liners

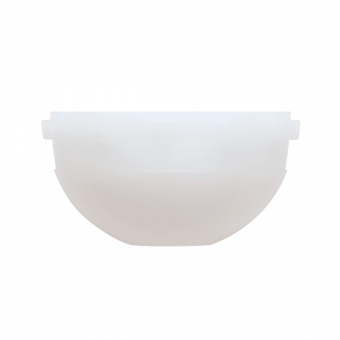

Neutral

Maximum head size while maintaining optimal bearing thickness
Utilizes a GUR1020 resin for superior mechanical properties, 7.5Mrad gamma irradiated crosslinking process
Proprietary thermal treatment to eliminate free radicals, EtO sterilized to maintain crosslinked integrity

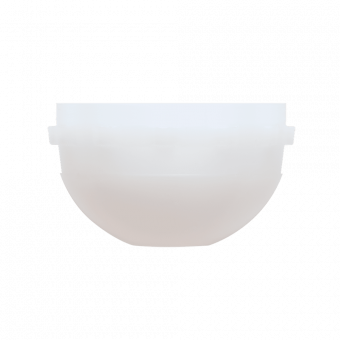

Lateralized

+3 Neutral option provides lateralization, resulting in a total offset of 4 mm
Maximum head size while maintaining optimal bearing thickness
Utilizes a GUR1020 resin for superior mechanical properties, 7.5Mrad gamma irradiated crosslinking process
Proprietary thermal treatment to eliminate free radicals, EtO sterilized to maintain crosslinked integrity

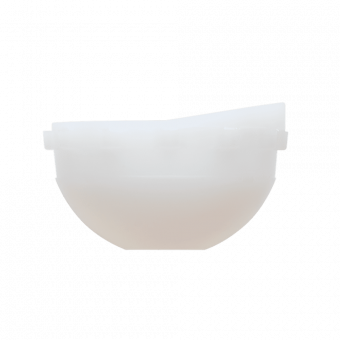

Hooded

10° hood provides potential for additional stability and influences ROM determinations
Maximum head size while maintaining optimal bearing thickness
Utilizes a GUR1020 resin for superior mechanical properties, 7.5Mrad gamma irradiated crosslinking process
Proprietary thermal treatment to eliminate free radicals, EtO sterilized to maintain crosslinked integrity

Face Changing

+3  mm lateralization from Neutral option with a 10° hood
Maximum head size while maintaining optimal bearing thickness
Utilizes a GUR1020 resin for superior mechanical properties, 7.5Mrad gamma irradiated crosslinking process
Proprietary thermal treatment to eliminate free radicals, EtO sterilized to maintain crosslinked integrity

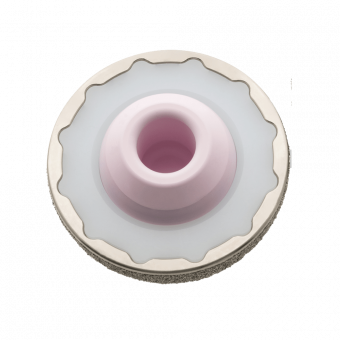

Locking Features

Taper and snap locking feature
Vent slots in liner reduce backpressure during implantation
Anti-rotational tabs provide rotational stability and aid in liner insertion

Femoral Heads

Cobalt Chrome and BIOLOX^®delta Ceramic
Available in sizes 28 mm – 40 mm
